Drain Survey Barnsley: What Every Property Owner Should Know

# Drain Survey Barnsley: What Every Property Owner Should Know

If you're buying a property in Barnsley, dealing with persistent slow drains, or planning an extension, a professional drain survey in Barnsley could be one of the most valuable things you do. The town's industrial heritage, clay-heavy geology, and large stock of Victorian terraced housing create a specific set of drainage challenges — and most of them are invisible without a camera down the pipe.

This guide covers what a drain survey involves in Barnsley, why local conditions matter, and when you genuinely need one.

Why Barnsley Properties Have Unique Drainage Risks

Does Barnsley's mining history affect drains?

Yes — significantly. Barnsley sits at the heart of the South Yorkshire coalfield, and coal mining in the area dates back to at least the 14th century, with large-scale colliery operations expanding dramatically through the 19th and 20th centuries. Decades of underground extraction caused ground subsidence across wide areas of the borough — and subsidence doesn't stop the day a pit closes.

Even today, historic mine workings beneath residential streets in areas like Worsbrough, Monk Bretton, Kendray, and Stairfoot can cause ongoing low-level ground movement. That movement is enough to shift, crack, or misalign the rigid clay and concrete drain pipes installed when those streets were built. In practical terms, this means Barnsley properties can develop drain problems through no fault of the homeowner — it's simply what happens when ground beneath old pipes slowly shifts.

What type of soil does Barnsley have?

Barnsley's geology is dominated by Coal Measures — a sequence of sandstones, shales, and clay-rich mudstones that were laid down alongside the coal seams. The clay content in these soils means they expand and contract with moisture. In a dry summer, clay soils shrink; in a wet winter, they swell. Over years and decades, this seasonal movement works on drain joints, gradually opening gaps that allow root ingress and ground water infiltration.

This clay soil effect is one of the most common reasons Barnsley homeowners discover cracked or displaced joints when they commission a CCTV drain survey — even on properties that show no obvious symptoms above ground.

How old are Barnsley's drains?

Barnsley's major expansion as a market town and mining hub happened in the Victorian and Edwardian eras. Many streets in areas like Dodworth Road, Gawber, Worsbrough Bridge, and the town centre were developed between roughly 1870 and 1920. The original drain runs laid in those streets — typically in glazed clay or brick — are now between 100 and 150 years old.

Clay drains built to that specification can last a very long time, but they were never designed to last forever. Root ingress from street trees, ground movement from nearby traffic and development, and simple age-related deterioration mean that properties in these neighbourhoods carry a higher baseline risk of drain problems than newer builds on more stable ground.

What Does a CCTV Drain Survey in Barnsley Involve?

What happens during a drain survey?

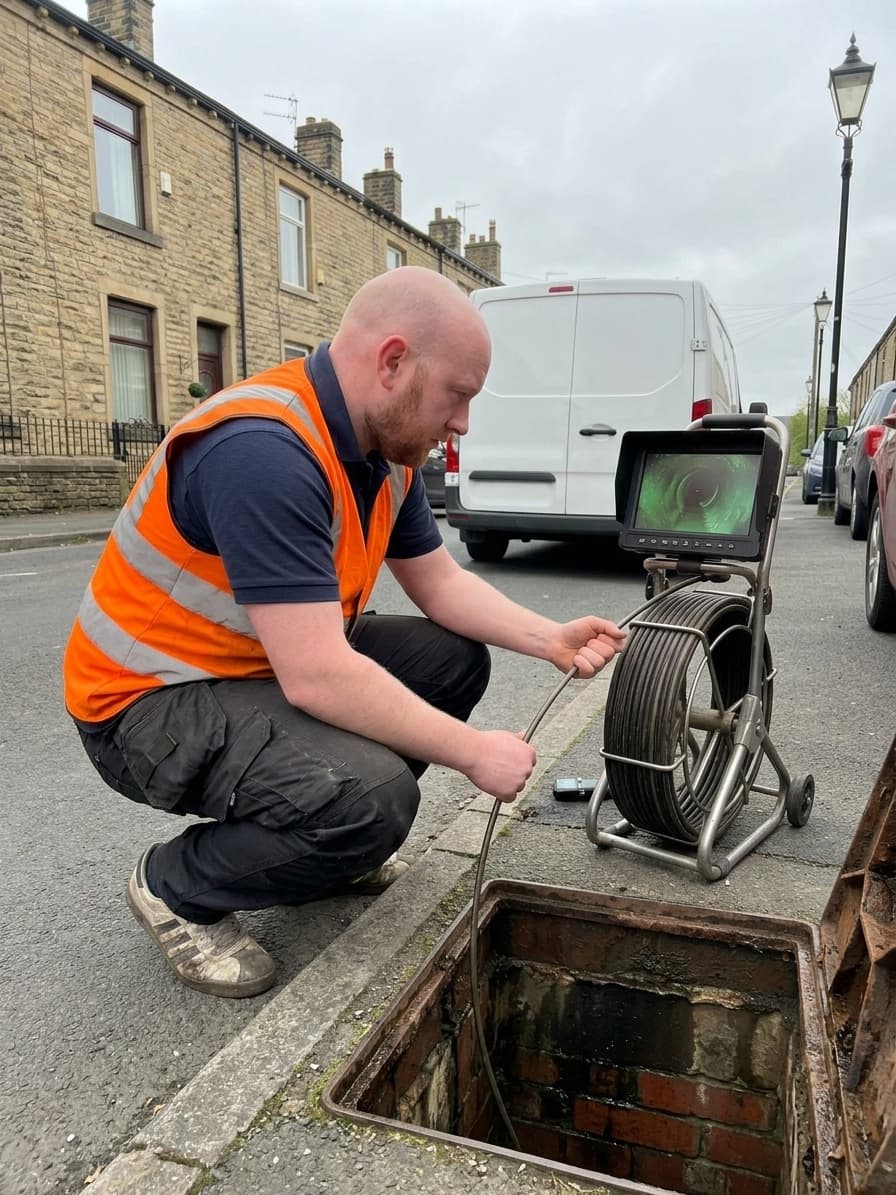

A CCTV drain survey is a non-invasive inspection. A trained engineer locates your inspection chambers, inserts a waterproof camera head on a flexible cable, and feeds it through the drain run while watching the live footage on a monitor. Everything is recorded, and you receive a written report — usually within 24 hours — with timestamped footage references, a description of any defects found, and recommendations for repair or further investigation if needed.

For most Barnsley terraced or semi-detached properties, the survey itself takes between one and two hours. There's no excavation, no need to shut off the water supply, and no damage to your garden or driveway.

We use iTouch CCTV cameras — best-in-class equipment that delivers sharp, clear footage even in older drain runs with debris build-up or restricted access. It's the difference between a survey that actually shows you what's there and a lower-cost alternative that misses hairline cracks or early-stage root ingress.

What problems are typically found in Barnsley drain surveys?

Based on local surveys, the most common issues identified in Barnsley properties are:

• Joint displacement — sections of pipe that have shifted slightly out of alignment, allowing root ingress and sediment build-up
• Root ingress — fine roots from garden shrubs and street trees penetrating through cracked joints and growing inside the pipe
• Fractures in clay pipe — hairline cracks that worsen over time, particularly in areas with a history of ground subsidence
• Silting and debris — build-up in low-gradient sections that has solidified over years of low-use
• Collapsed sections — relatively rare in residential properties but found more frequently in older commercial premises and industrial-era buildings

When Do You Need a Drain Survey in Barnsley?

Do I need a drain survey when buying a house in Barnsley?

If the property was built before 1970, yes — and for Barnsley's Victorian streets, it's particularly important. Standard mortgage valuations and Level 2 or Level 3 RICS surveys do not include any underground drainage inspection. Your surveyor will note the location of manholes and may flag visible signs of drainage problems, but they will not put a camera down the drain.

That means it is entirely possible to complete on a Barnsley terrace and only discover a collapsed drain months later when a sewage smell develops or the garden starts to dip. A pre-purchase drain survey carried out alongside your structural survey fills that gap — and if it finds a problem, you have a negotiating tool or grounds to walk away.

For more on what a homebuyer survey does and doesn't cover, see our guide on whether a homebuyer survey includes drains.

Should I get a drain survey before a home extension in Barnsley?

Yes. If you're planning a rear extension, loft conversion with new drainage, or any groundworks on a Barnsley property, you need to know where your drain runs are and what condition they're in before breaking ground. Building over or near a drain requires a Build Over Agreement with Yorkshire Water, and that application requires evidence that the drain is in serviceable condition.

Our drain survey for home extensions service includes drain tracing and mapping — giving you the exact route and depth of your drain runs plotted onto a site plan, so your architect and builder can design around them safely.

What if I'm a landlord in Barnsley?

Landlords have a duty to maintain the drainage infrastructure serving their properties in working order. A blocked or collapsed drain isn't just a maintenance issue — it can lead to sewage backing up into a tenant's kitchen or bathroom, which triggers immediate repair obligations and potential liability.

A periodic drain survey for landlords is a sensible way to catch problems early, keep repair costs manageable, and document the condition of the drainage system if a dispute arises.

Getting a Quote for a Drain Survey in Barnsley

We provide clear, upfront pricing before any work begins — call 0113 734 2245 and we'll give you a quote based on the property type, number of drain runs, and access arrangements. Professional surveys using best-in-class iTouch CCTV cameras and experienced engineers cost more than budget alternatives, and the difference shows in the quality of the footage and the detail of the report. A survey that misses a defect isn't a bargain.

Yorkshire Drain Survey covers the whole of Barnsley and the surrounding area, including Sheffield, Rotherham, Wakefield, and Doncaster. We aim to turn around survey reports within 24 hours of the inspection.

To book a drain survey in Barnsley, call us on 0113 734 2245 or fill in our contact form and we'll get back to you the same day.
