Drain Survey Sheffield: What to Expect and Why It Matters

# Drain Survey Sheffield: What to Expect and Why It Matters

If you're buying a home in Sheffield, or you've noticed slow drainage or damp patches in your property, a professional drain survey in Sheffield is often the smartest first step. Sheffield is one of Yorkshire's most characterful cities — but a significant proportion of its housing stock sits on drainage systems that are well over a century old. Knowing what's going on underground before you commit to a purchase, or before a small issue becomes a big repair bill, can save you thousands.

Why Sheffield Properties Particularly Need Drain Surveys

Sheffield's drainage history goes back further than most people realise. After a cholera outbreak hit the city in 1838, the Sheffield Local Board was established and the first proper sanitation infrastructure was laid down. Researchers believe many of those original drain runs were installed in the late 1840s — meaning some Sheffield drains are approaching 180 years old.

Clay and brick drains of that era were built to last, but they weren't built forever. Over time they crack, shift with ground movement, and become infiltrated by tree roots. Terraced streets in areas like Hillsborough, Walkley, Sharrow, and Burngreave are especially likely to have original or early-replacement drain runs that have never been formally inspected.

If you're buying in these neighbourhoods, a homebuyer drain survey isn't a luxury — it's essential due diligence.

How Much Does a Drain Survey in Sheffield Cost?

A CCTV drain survey in Sheffield typically costs between £100 and £250 for a standard residential property. The final price depends on the size of the property, the number of drain runs, and whether access is straightforward or requires clearing debris first.

Across the UK the price range is a little wider — from around £90 up to £350 for larger or more complex systems — but for a typical Sheffield terrace or semi-detached, you should budget toward the lower end of that scale.

That cost needs to be weighed against the alternative. A collapsed drain can cost £2,000–£8,000 or more to excavate and repair, depending on depth and access. A drain survey before you buy costs a fraction of that, and it's money well spent if it reveals a problem you can negotiate on — or a reason to walk away entirely.

What Does a CCTV Drain Survey Actually Involve?

What happens during a drain survey?

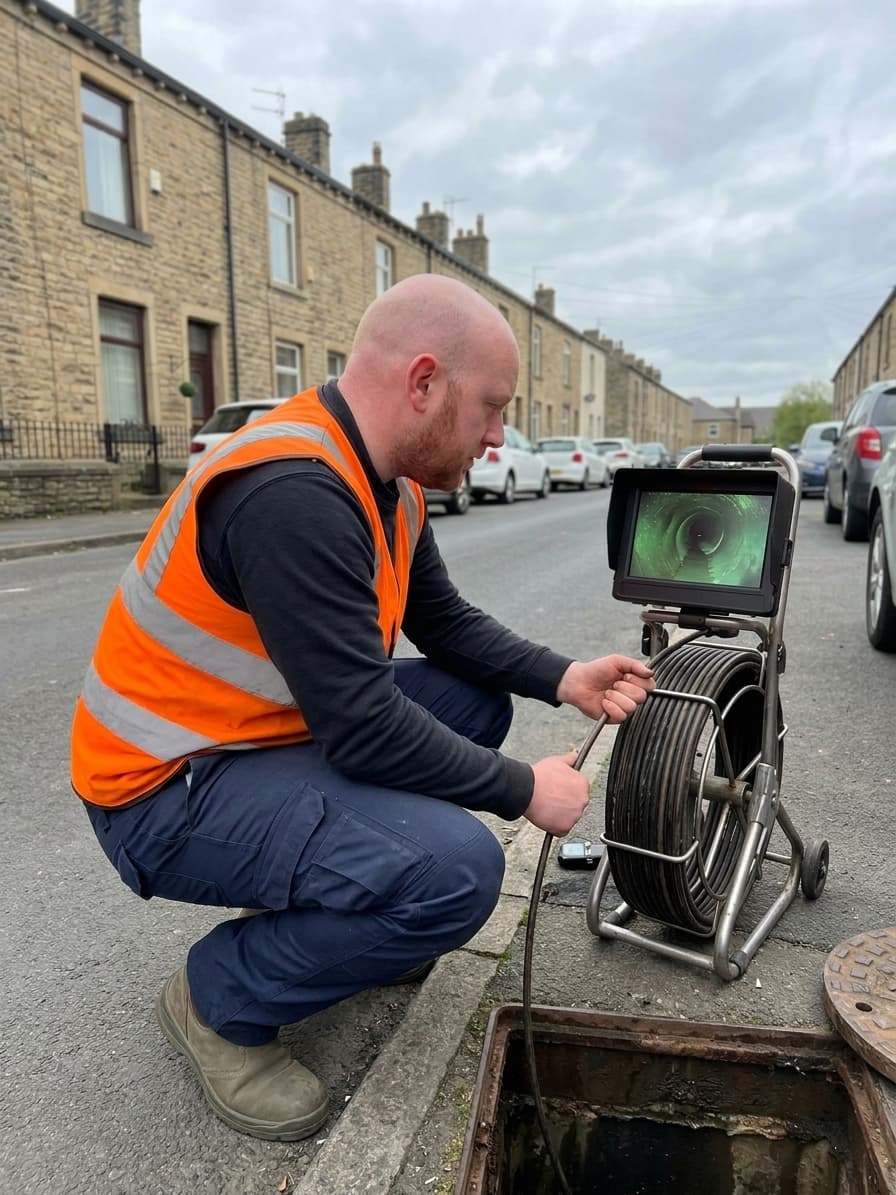

A CCTV drain survey involves a trained engineer inserting a small waterproof camera on a flexible cable into your drain via an inspection chamber or access point. The camera transmits live video to a monitor and records the footage. The engineer inspects the footage in real time, noting any defects, and you receive a written report with timestamps and recommendations.

The whole process for a standard residential property in Sheffield usually takes 1–2 hours. There's no digging, no disruption to your garden or driveway, and no need to be off the water supply.

What problems do Sheffield drain surveys commonly find?

In Sheffield's older terraced streets, the most frequently identified issues are:

• Root ingress — tree roots from street trees and garden shrubs finding their way into cracked clay pipes
• Fractures and joint displacement — sections of pipe that have shifted due to ground movement or age
• Blockages and grease build-up — particularly in older properties that have never had drains professionally cleaned
• Collapsed sections — where pipe walls have given way entirely, causing partial or full blockage

Root ingress is particularly common in streets with mature trees, which covers large parts of the Ecclesall Road, Nether Edge, and Crookes areas.

Do I need a drain survey when buying a house in Sheffield?

Yes — particularly for any property built before 1970. Neither a standard mortgage valuation nor a Level 2 or Level 3 RICS survey includes any inspection of the underground drainage. Your surveyor will note visible manholes and may flag any obvious signs of drainage problems, but they won't put a camera down the drain.

That means it's entirely possible to complete on a Sheffield terrace and only discover a collapsed drain six months later when your garden starts sinking or you get a sewage smell in the kitchen. A homebuyer drain survey run alongside your structural survey closes that gap.

Sheffield Drain Surveys for Commercial Properties

It's not just homebuyers who benefit. Businesses in Sheffield city centre, Kelham Island, and Attercliffe — areas with a mix of converted industrial buildings and older commercial premises — regularly commission commercial drain surveys as part of lease renewals, dilapidations schedules, and pre-acquisition due diligence.

If you're taking on a commercial tenancy or purchasing a business premises in Sheffield, understanding the condition of the drainage infrastructure can be a significant factor in renegotiating terms.

Drain Tracing in Sheffield

Older Sheffield properties sometimes have drain runs that don't follow obvious routes — they meander around extensions, shared outbuildings, and historic additions. If you need to locate a drain precisely before groundworks or an extension, drain tracing and mapping uses a transmitter head on the survey camera to plot the exact path and depth of your drain runs on a site plan.

This is increasingly requested by architects and builders working on Sheffield's popular terraced conversions and loft extensions.

Book a Drain Survey in Sheffield Today

Yorkshire Drain Survey covers the whole of Sheffield and the surrounding area, including Rotherham, Barnsley, and Doncaster. We provide fast turnaround on reports — typically within 24 hours of the survey — and all work is carried out by experienced drainage engineers using professional-grade CCTV equipment.

To book a drain survey in Sheffield or to get a no-obligation quote, call us on 0113 734 2245 or fill in our contact form and we'll get back to you the same day.
